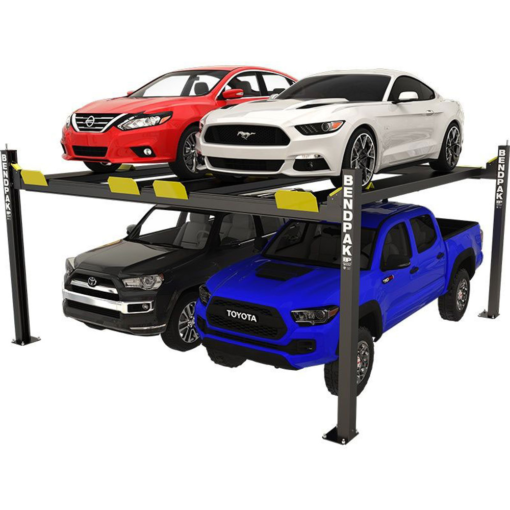

BENDPAK HD-9SWX 9,000-LB. CAPACITY SUPER WIDE 82″ RISE CAR STACKER PARKING LIFT
$3,446.78
The BENDPAK HD-9SWX 9,000-LB. CAPACITY SUPER WIDE 82″ RISE CAR STACKER PARKING LIFT is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
BendPak HD-9SWX Double-Wide Car Lift
The HD-9SWX is the ultimate extended-length, high-rise, double-wide car lift designed to transform your garage into a state-of-the-art parking facility. With its super-wide design and extended-length runways, this lift can turn a two-car space into a four-car trophy stand. Perfect for parking, storage, and service, the HD-9SWX offers exceptional clearance underneath, making it ideal for long-wheelbase vehicles. Its 9,000-lb. capacity (4,500 lbs. max per car, per side) ensures it can handle sedans, sports coupes, and more. Whether for family garages or professional auto shops, the HD-9SWX delivers unmatched versatility and performance.
Features
- 9,000-lb. maximum lifting capacity
- Double-wide configuration for quad-vehicle storage
- Super-tall rise and extra-long ramps for low-clearance vehicles
- Four runways with non-skid surfaces
- Electric/hydraulic power system with a single hydraulic cylinder
- Fully enclosed lifting cables, safety locks, and sheaves
- Multi-position safety locks with push-button pneumatic release
- Heavy-duty 3/8” aircraft-grade stainless steel cables
- Internal anti-sway slider blocks and oversized self-lubricating cable rollers
- Customizable power unit location and removable approach ramps
- Optional accessories: drive-thru ramps, drip trays, solid decks, and rolling jacks
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 9,000 lbs. (4,500 lbs. per side) |
| Max Rise | 82″ (2,083 mm) |
| Max Lifting Height | 89″ (2,261 mm) |
| Time to Full Rise | 65 seconds |
| Overall Width | 202″ (5,131 mm) |
| Overall Length | 224″ (5,690 mm) |
| Height of Columns | 102″ (2,591 mm) |
| Drive-Thru Clearance | 178″ (4,521 mm) |
| Runway Width | 19″ (483 mm) |
| Runway Length | 188″ (4,775 mm) |
| Locking Positions | 16 (every 4″) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 2,987 lbs. (1,354.9 kg) |
| Shipping Dimensions | 206” x 22” x 40” (5,232 mm x 559 mm x 1,016 mm) |
Why Choose the HD-9SWX?
The HD-9SWX is the perfect solution for maximizing space and efficiency in your garage or shop. Its double-wide design, extended-length runways, and high-rise capabilities make it ideal for storing or servicing multiple vehicles, including long-wheelbase models. With advanced safety features, durable construction, and optional accessories, the HD-9SWX is a reliable and versatile choice for both homeowners and professionals. Backed by BendPak’s reputation for quality, this lift is built to last and designed to meet your needs.
