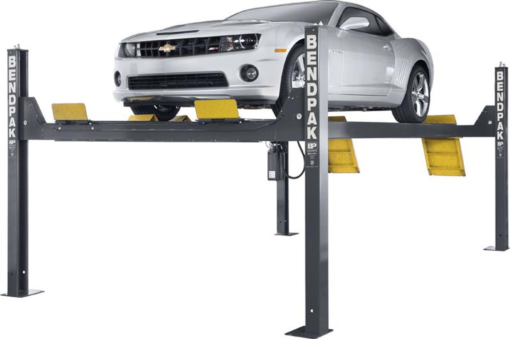

BENDPAK HDS-14 14,000-LB. CAPACITY ALI CERTIFIED STANDARD LENGTH CAR LIFT
$2,473.01
The BENDPAK HDS-14 14,000-LB. CAPACITY ALI CERTIFIED STANDARD LENGTH CAR LIFT is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
BendPak HDS-14 Four-Post Car Lift
The HDS-14 is a commercial-grade, 14,000-lb. capacity four-post car lift designed for the most demanding professional applications. Built with durability, safety, and productivity in mind, this lift features extended runways, heavy-duty aircraft cables, and advanced safety mechanisms. Whether you’re working on sedans, trucks, or SUVs, the HDS-14 ensures reliable performance and peace of mind. With its robust construction and innovative design, the HDS-14 is the industry benchmark for quality and dependability.
Features
- 14,000-lb. lifting capacity (7,000 lbs. per axle)
- Extended runways for long-wheelbase vehicles
- Dual-hub cable sheaves for reduced stress and wear
- Heavy-duty 1/2” diameter stainless-steel lifting cables
- Built-in lubrication points for easy maintenance
- Integrated hydraulic flow restrictor for controlled descent
- Spring-loaded safety locks with push-button pneumatic release
- Secondary lock system for added safety
- Non-skid runways for maximum grip
- Longer approach ramps for low-clearance vehicles
- Optional 7,000-lb. capacity rolling jacks (Model RBJ7000)
- ETL approved and CE certified
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 14,000 lbs. (6,350 kg) |
| Max Rise | 70″ (1,778 mm) |
| Max Lifting Height | 77.625″ (1,972 mm) |
| Time to Full Rise | 60 seconds |
| Overall Width | 130″ (3,302 mm) |
| Overall Length | 241″ (6,121 mm) |
| Height of Columns | 93″ (2,362 mm) |
| Drive-Thru Clearance | 98″ (2,489 mm) |
| Runway Width | 20″ (508 mm) |
| Runway Length | 199″ (5,055 mm) |
| Locking Positions | 13 (every 4″) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 2,605 lbs. (1,181.6 kg) |
| Shipping Dimensions | 211” x 24” x 32” (5,359 mm x 610 mm x 813 mm) |
Why Choose the HDS-14?
The HDS-14 is the ultimate solution for professional garages and service bays requiring a heavy-duty lift. Its 14,000-lb. capacity, extended runways, and advanced safety features make it ideal for handling large vehicles like trucks, SUVs, and limos. With BendPak’s reputation for quality and innovation, the HDS-14 ensures reliable performance and long-lasting durability. Whether you’re performing routine maintenance or complex repairs, this lift is built to meet your needs.
