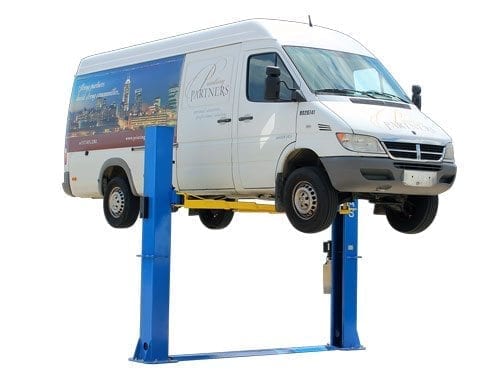

Atlas® BP10000X 2-Post Baseplate Lift

The Atlas® BP10000X is a commercial-grade 2-post baseplate lift, specifically designed for customers who need to lift heavy vehicles in garages with low ceilings. With a 10,000 lb. lifting capacity, this lift is perfect for handling anything from a one-ton dually to a Smart Car, all while fitting within an 11-foot ceiling height. The robust construction, including welded support gussets and oversized columns, ensures superior strength and durability.

Features

10,000 lb. lifting capacity for commercial-grade performance
Baseplate, open-top style lift for low ceiling garages
Single-point lock release for simultaneous column disengagement
Super-symmetric arms for enhanced stability
Dual hydraulic chain-drive cylinders built to ANSI standards
Welded support gussets increase column strength
Automatic arm restraints for added safety
Durable powder coat finish for longevity
Free 12-piece truck adapter set included
5-year structural warranty, 2-year hydraulic warranty (parts only)

Specifications

Specification	Details
Lifting Capacity	10,000 LB
Overall Height	111 7/8″ (9’ 3 7/8″)
Overall Floor Width	139 1/8″ (11’ 7 1/8″)
Outside Column Width	134 1/2″ (11’ 2 1/2″)
Max Lift Height (Without Adapters)	77 3/8″
Max Lift Height (With Adapters)	86 3/8″
Minimum Arm Height	4″
Inside Column Width	112 1/4” (9’ 4 1/4”)
Drive-Thru Clearance	101 1/4” (8’ 5 1/4”)
Column Size	9 1/2″ x 11″
Column Steel Thickness	6mm
Base Dimensions	17 1/2″ x 21 1/2″
Motor / Electrical	220V single-phase, 30A breaker recommended
Oil Requirement	3-5 Gallons AW32/AW46 (Not Included)
Shipping Weight	1,640 LBS
Adapter Heights	4 Each (2”, 3”, 6”)
Arm Hole / Adapter Peg Size	1.5”
Concrete Requirement	Minimum 4″ thick, 3000 PSI rating

Note: The Atlas® BP10000X is a high-performance commercial-grade lift designed for low-ceiling garages. It offers a perfect blend of durability, safety, and functionality, making it an excellent choice for shops needing a reliable lifting solution.
