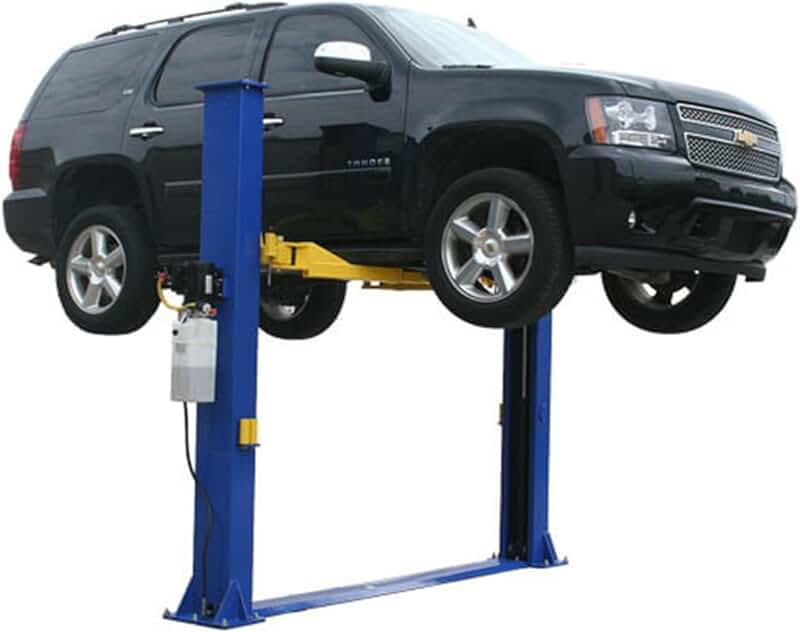

BP12000X 12,000 lb Baseplate Lift
$2,900.00
The BP12000X 12,000 lb Baseplate Lift is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
Atlas® BP12000X 2-Post Baseplate Lift
The Atlas® BP12000X is a heavy-duty, commercial-grade 12,000 LB. capacity 2-post baseplate above-ground lift. Designed for garages with limited ceiling height, this powerful lift features oversized columns, three-stage symmetric arms, and a single-point lock release. The adjustable width settings allow for accommodating wider trucks and trailers, making it an excellent choice for commercial garages needing versatility and strength.
Features
- 12,000 lb. lifting capacity for heavy-duty vehicles
- Baseplate, open-top style lift for low ceiling garages
- Adjustable width for accommodating wider trucks and trailers
- Three-stage symmetric arms for stability and versatility
- Automatic arm restraints for safety
- Single-point lock release for easy operation
- Rubber guards on carriages to prevent vehicle damage
- Dual hydraulic chain-over cylinders for smooth lifting
- Durable powder coat finish for longevity
- Includes a free 12-piece truck adapter set
- Mounting hardware included
- 5-year structural warranty, 2-year hydraulic warranty (parts only)
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 12,000 LB |
| Overall Height | 122 1/2″ (10′ 2 1/2″) |
| Adjustable Width | Yes |
| Arm Type | 3-Stage Symmetric Arms |
| Locking System | Single-Point Lock Release |
| Arm Restraints | Automatic |
| Carriage Protection | Rubber Guards |
| Lifting Mechanism | Dual Hydraulic Chain-Over Cylinders |
| Finish | Powder Coated |
| Truck Adapter Set | Free 12-piece set included |
| Mounting Hardware | Included |
| Shipping Weight | 2,130 LBS |
| Warranty | 5-Year Structural, 2-Year Hydraulic (Parts Only) |
Note: The Atlas® BP12000X is designed for commercial garages that require a high-capacity lift in a low-ceiling environment. With its robust construction, adjustable width settings, and superior lifting power, it ensures reliability and performance for years to come.
