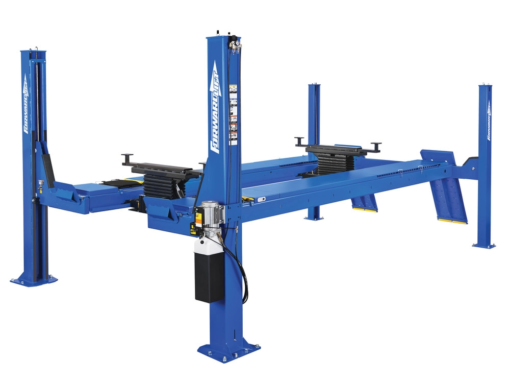

CROA14 Alignment Runway Lift

The CROA14 is an alignment-ready lift designed for vehicles with longer wheelbases, accommodating service vehicles with wheelbases up to 215”. Its open front design enhances vehicle access. The lift comes equipped with rolling jacks, turning radius components, and a high-performance cable and sheave system for efficient, easy use.

Key Features

Two runway lengths designed for vehicles with longer wheelbases (up to 215”).
Open front lift design for easier vehicle access.
80 3/4” rise height for easy access under large vehicles.
Adjustable front radius gauge positioning and long slip plates for a broad four-wheel alignment wheelbase range.
Patented articulating shaft design ensures even roller loading.
Heavy-duty, high-performance cable and sheave system for smooth operation.
Single-point lift operation with air-operated lock release for ease of use.
Multi-position lock components allow the lift to remain level at any lock position.
Self-chocking approach ramps with louvers for traction and protective rollers.
Durable powder coat finish for long-lasting protection.

Lift Options

Extended Ramps
Drive-through Ramps
LED Runway Light Kit

Specifications

Specification	CROA14N201Y
Capacity	14,000lbs
Maximum Wheelbase	182 1/2″
Maximum Two Wheel Alignment	166 1/4″
Maximum Four Wheel Alignment	157″
Minimum Four Wheel Alignment	88″
Maximum Rise	80 3/4″
Overall Length	21′ 1″
Overall Width	11′ 8 1/2″
Width Inside Columns	116 1/4″
Length between Columns	194 3/4″
Column Height	9′ 1 1/8″
Runway Width	20″
Runway Height	9″
Width between Runways	43″
Front of Runway to Center of Radius Gauge	22 3/4″ to 52 3/4″
Motor	2HP
Minimum Bay Size	15’x26′
