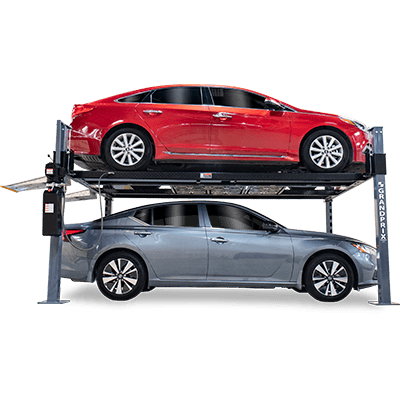

GP-9XLT Package (5175257) 9,000-lb. Capacity / High Lift / Extended Length / Includes Aluminum Ramps, Caster Kit, Jack Platform and Drip Trays
$2,421.00
The GP-9XLT Package (5175257) 9,000-lb. Capacity / High Lift / Extended Length / Includes Aluminum Ramps, Caster Kit, Jack Platform and Drip Trays is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
BendPak HD-9XW Four-Post Lift
The BendPak HD-9XW Four-Post Lift is a versatile and reliable solution for parking, storage, and light service applications. Designed with a 9,000-lb. capacity, this lift features durable boxed-steel columns, 16 positive locking positions, and a secondary slack-cable lock system for added safety. Its low-profile runways and aluminum approach ramps make it ideal for low ride-height vehicles, while the optional full-length aluminum platforms expand its storage capabilities. Whether you’re working in a professional shop or a home garage, the HD-9XW delivers exceptional performance and durability.
Features
- 9,000-lb. lifting capacity (4,500 lbs. per axle)
- Boxed-steel columns with 12” x 12” baseplates
- 16 positive locking positions spaced every 4 inches
- Secondary slack-cable lock system for backup safety
- Low-profile runways (5” high) for low ride-height vehicles
- Stainless steel lifting cables rated at 14,000 lbs. each
- 36” aluminum approach ramps with gusseted design
- Durable powder-coat finish for corrosion resistance
- Optional full-length aluminum platforms for additional storage
- Electric/hydraulic power system with single hydraulic cylinder
- Non-marring heavy-duty poly caster wheels
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| Max Rise | 82″ (2,083 mm) |
| Max Lifting Height | 87″ (2,210 mm) |
| Time to Full Rise | 55 seconds |
| Overall Width | 114″ (2,896 mm) |
| Overall Length | 227″ (5,766 mm) |
| Height of Columns | 99″ (2,515 mm) |
| Drive-Thru Clearance | 86″ (2,184 mm) |
| Runway Width | 18.75″ (476 mm) |
| Runway Length | 189.75″ (4,820 mm) |
| Locking Positions | 16 (every 4″) |
| Motor | 110VAC, 50-60Hz, 1Ph (Standard) or 208-230VAC, 50-60Hz, 1Ph (Optional) |
| Shipping Weight | 2,416 lbs. (1,095.9 kg) |
| Shipping Dimensions | 190” x 22” x 35” (4,826 mm x 558 mm x 889 mm) |
Why Choose the HD-9XW?
The BendPak HD-9XW Four-Post Lift is the perfect choice for those seeking a durable, versatile, and safe lifting solution. Its robust construction, advanced safety features, and low-profile design make it ideal for a wide range of vehicles, including low ride-height cars and SUVs. With optional full-length aluminum platforms, this lift can also store lawnmowers, ATVs, and motorcycles, maximizing your garage space. Backed by BendPak’s legacy of quality and reliability, the HD-9XW is a trusted investment for any garage or workshop.
